Description
Advanced Technology for Unmatched Performance
SOVA’s N-Type Solar Panels redefine solar efficiency, surpassing traditional p-type PERC panels. Featuring enhanced cell efficiency, an extended lifespan, and consistent high performance, these panels are engineered to provide reliable energy under all conditions.

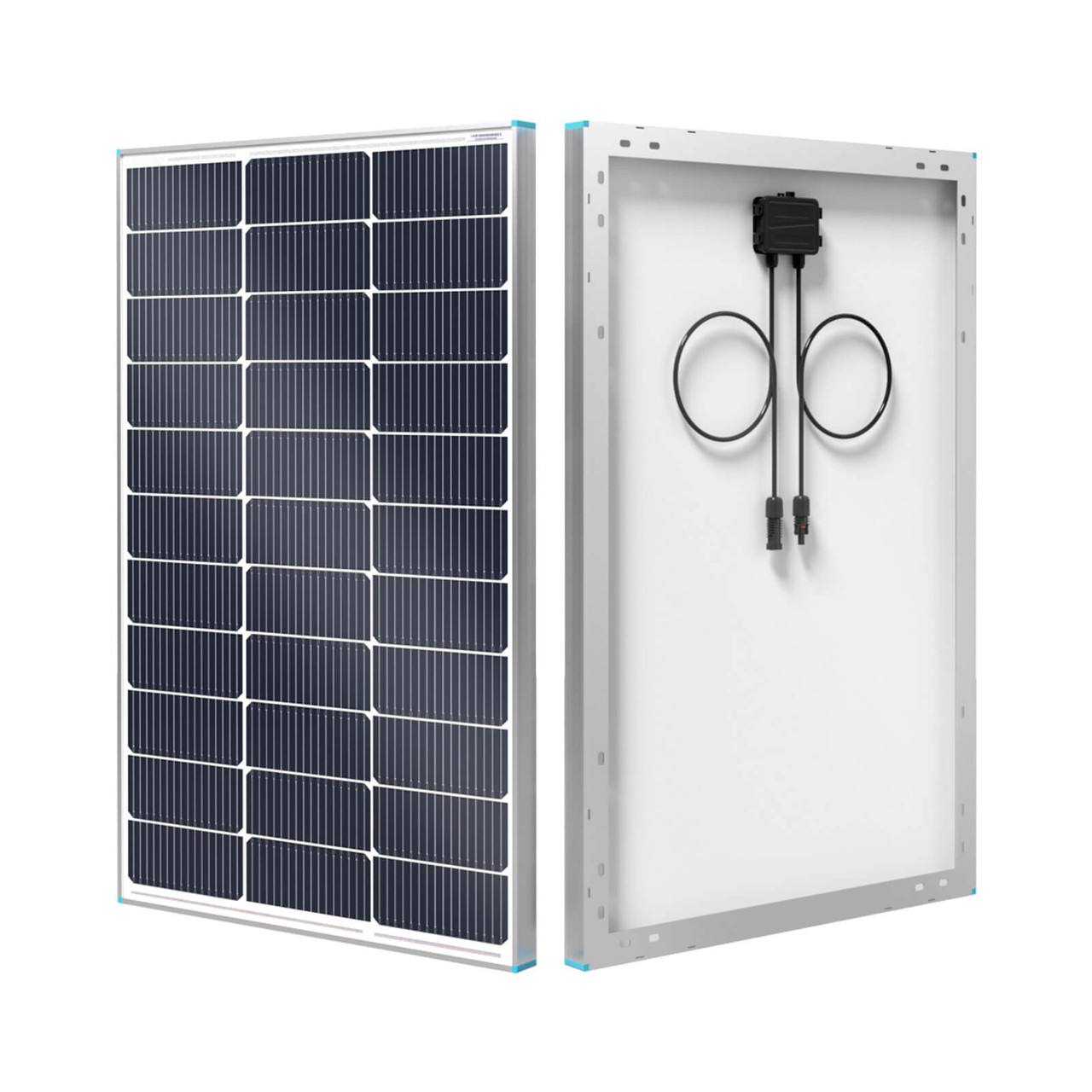

Superior Efficiency and Increased Power Output

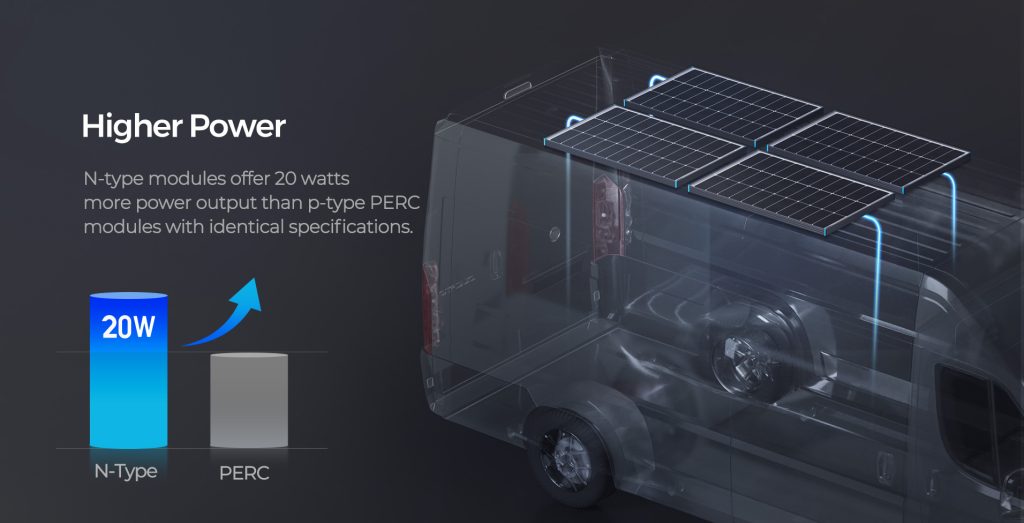

The 100W 12V N-Type Solar Panel achieves an outstanding 25% conversion efficiency, delivering 20W more power than comparable p-PERC panels. This exceptional performance ensures greater energy generation and long-term savings.
High-Quality Construction for Lasting Reliability

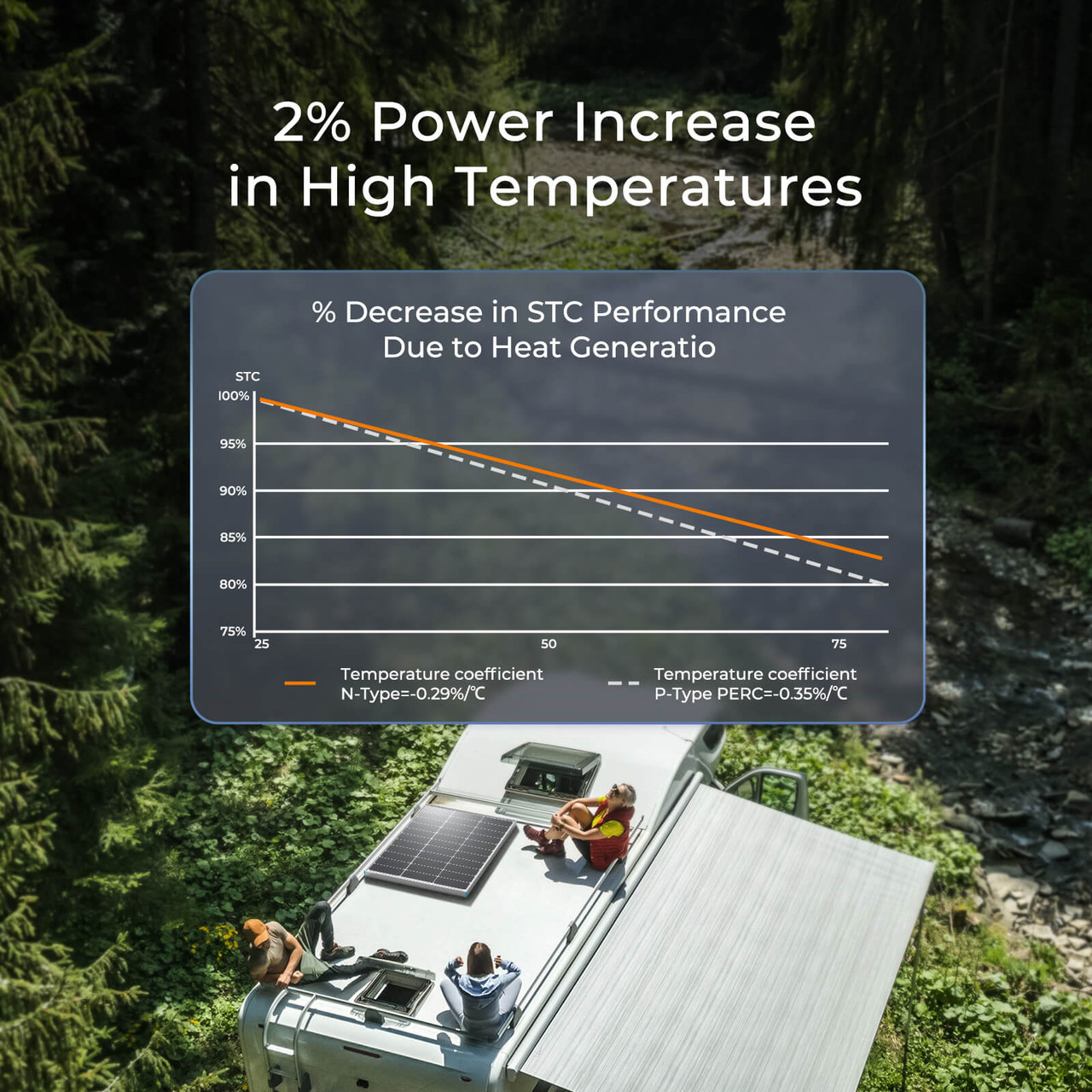

Optimized Performance in High-Temperature Conditions

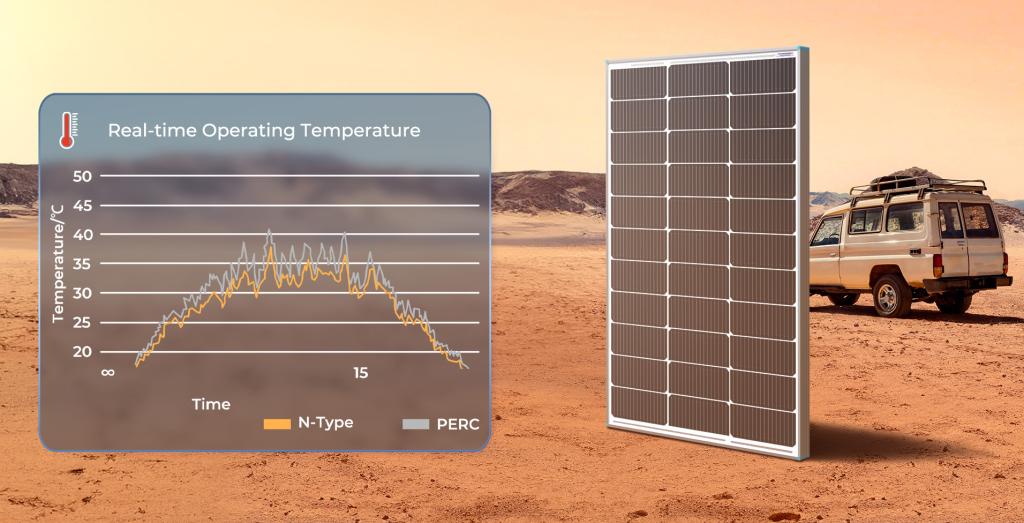

With a temperature coefficient of -0.29%/℃, SOVA’s N-Type Solar Panels remain cooler and sustain higher energy output in hot climates compared to p-PERC panels. This makes them the ideal solution for demanding environmental conditions.
Module Performance |
|
| Max Power at STC: 100W | Module Efficiency: 20% |
| Open Circuit Voltage: 22.79V | Short Circuit Current: 5.31A |
| Optimum Operating Voltage: 19.97V | Optimum Operating Current: 5.01A |
| Maximum System Voltage: 600VDC | Maximum Series Fuse Rating: 15A |
| Operating Temperature: -40°F-194°F / -40℃-90℃ | Dimensions: 865x578x30 mm / 34.1×22.8×1.2 in |
| Weight: 5.9kg/13.0lbs | |
Warranty |
|
| Material and workmanship warranty: 10 Years | Performance Warranty: 5-year 95% output warranty, 10-year 90% output warranty, 25-year 80% output warranty |
Certifications |
|
| Manufactured in a Certified ISO 9001 Facility: Yes | |

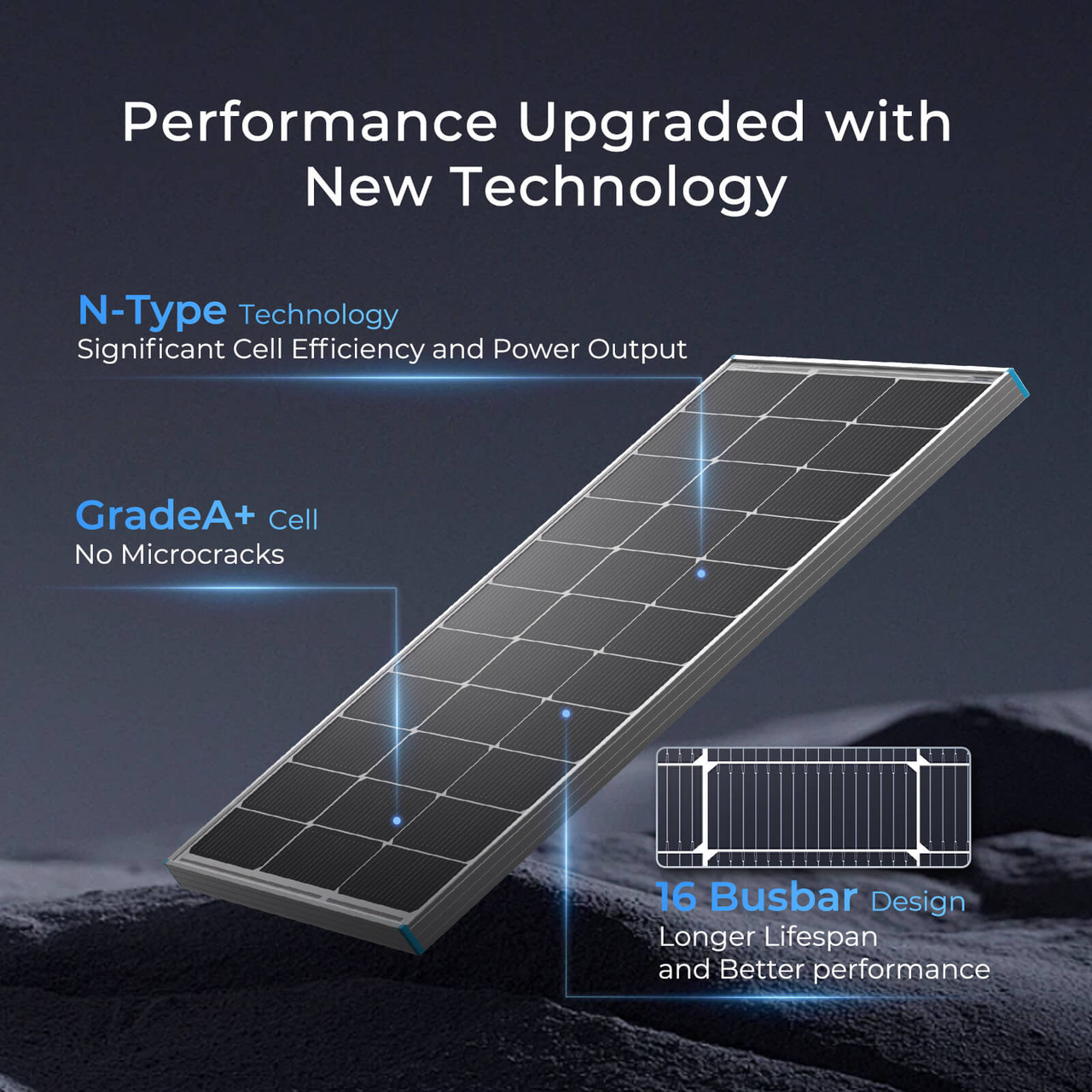

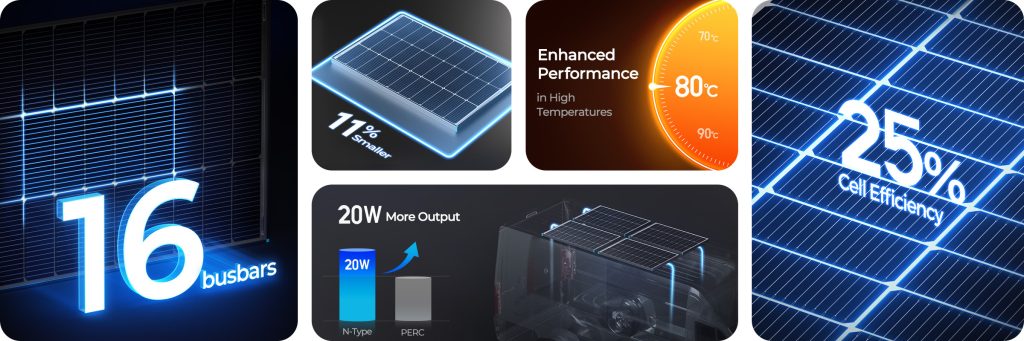

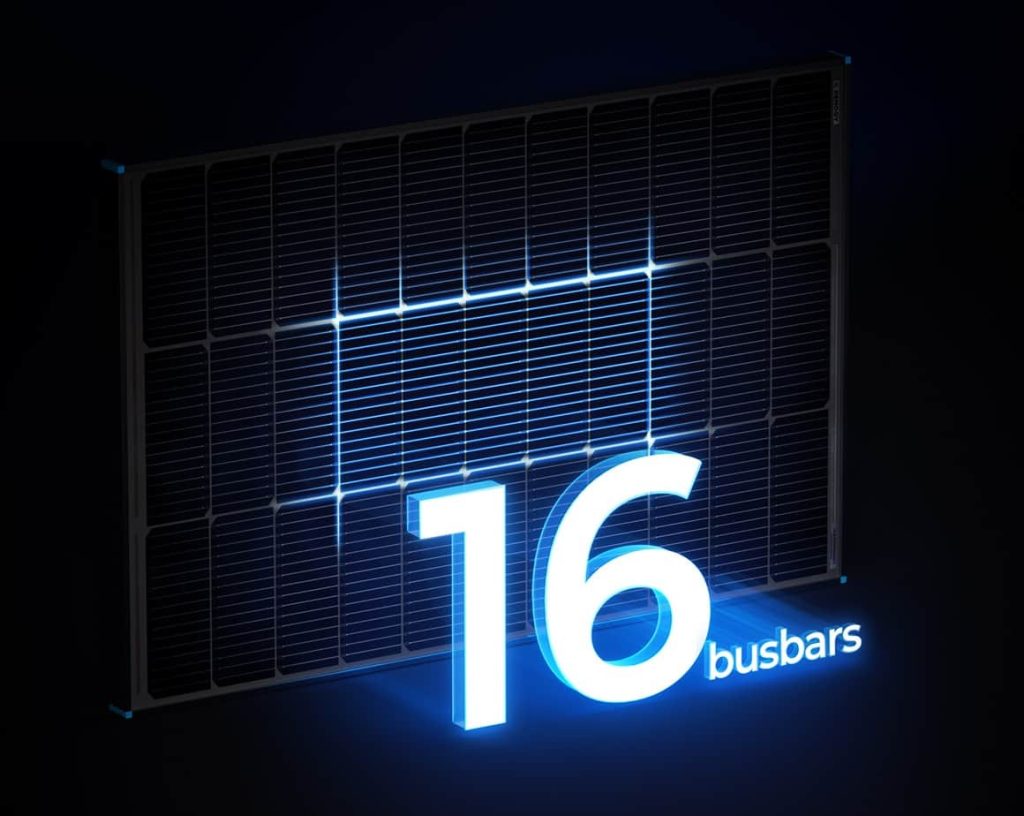

Cutting-Edge 16BB Cell Technology
Featuring 16-busbar (16BB) cell technology, these panels deliver superior energy conversion efficiency and enhanced durability. The innovative design reduces the risk of microcracks, ensuring a longer lifespan and reliable power output over time.

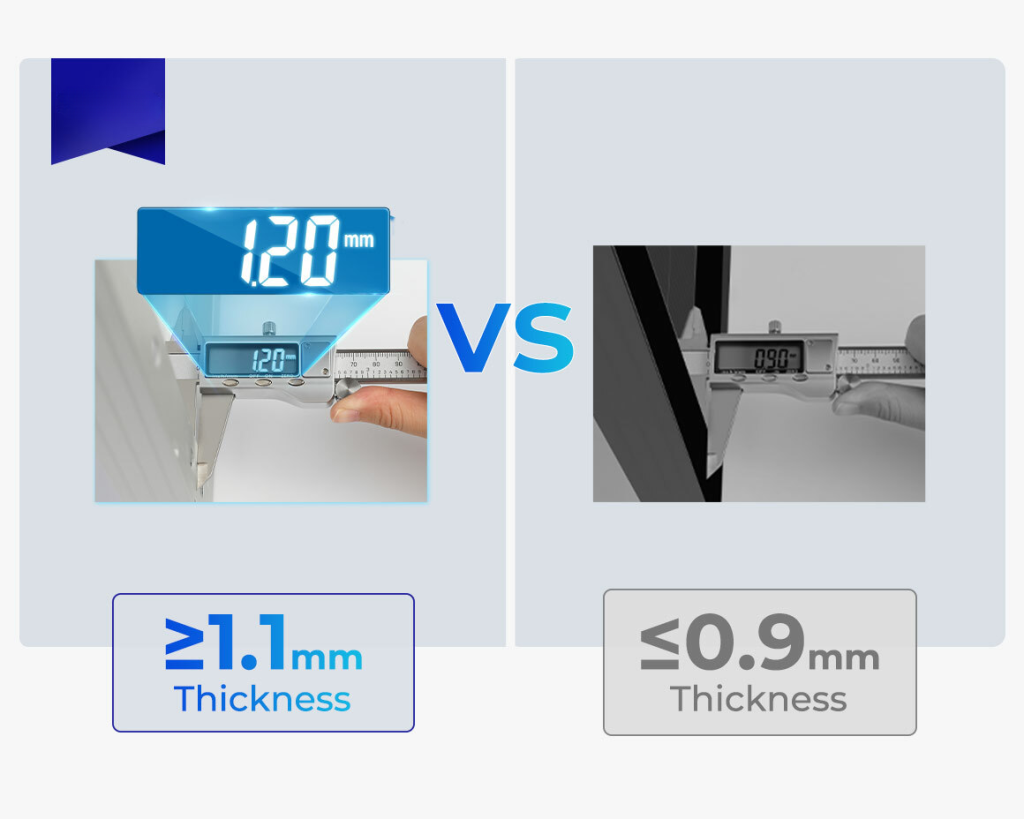

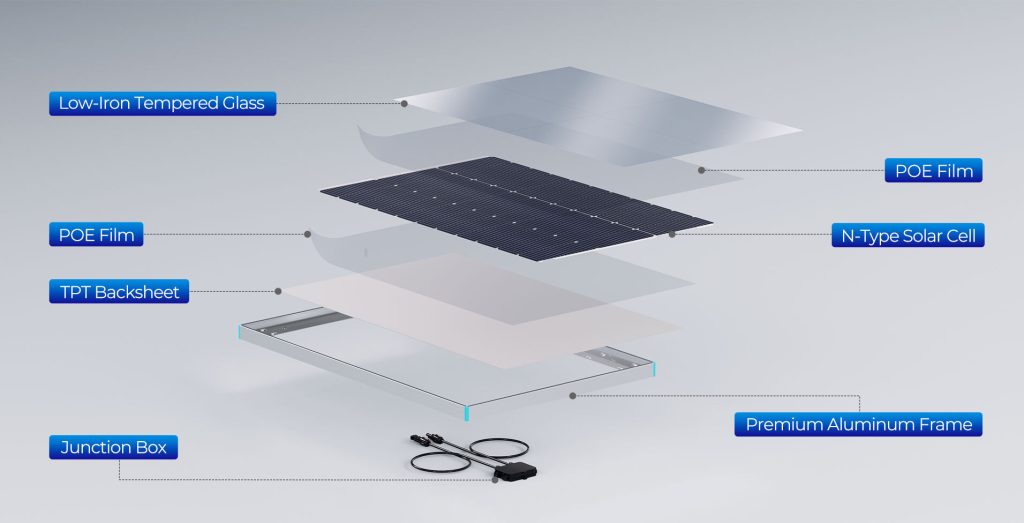

Reinforced Aluminum Frame for Superior Durability
Crafted from a robust aluminum alloy with a thickness exceeding 1.1mm, the frame offers exceptional strength and protection, outperforming competitor panels. This reinforced design enhances the panel’s resilience to harsh weather, including high wind and heavy snow loads.

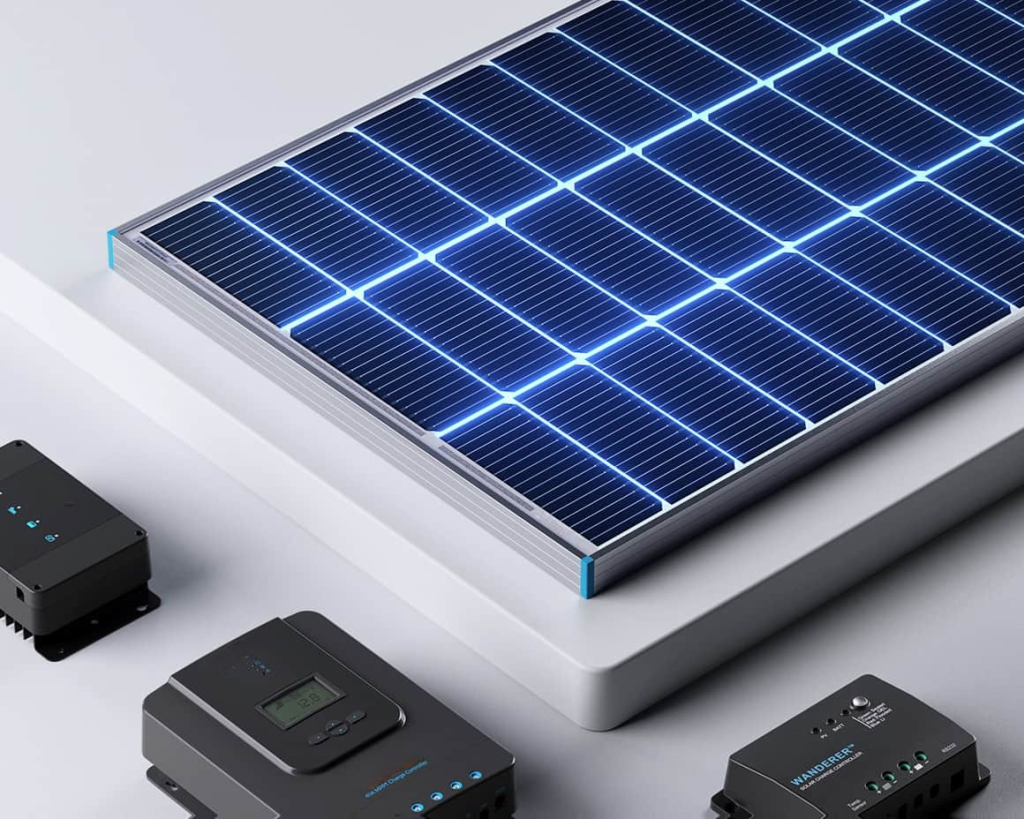

Wide Compatibility with Charge Controllers
With an open-circuit voltage below 25V, this panel is compatible with 99% of MPPT and PWM charge controllers. Its versatile design makes it an ideal choice for a variety of solar power systems.

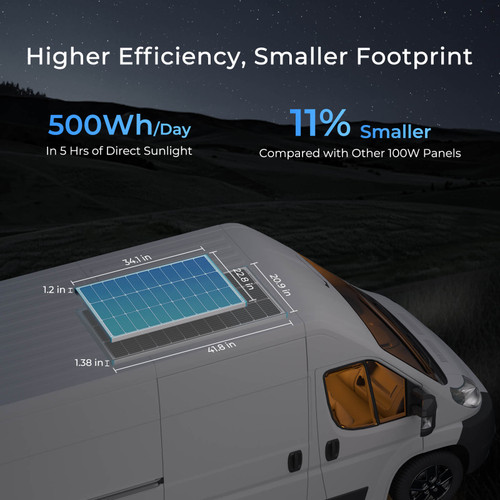

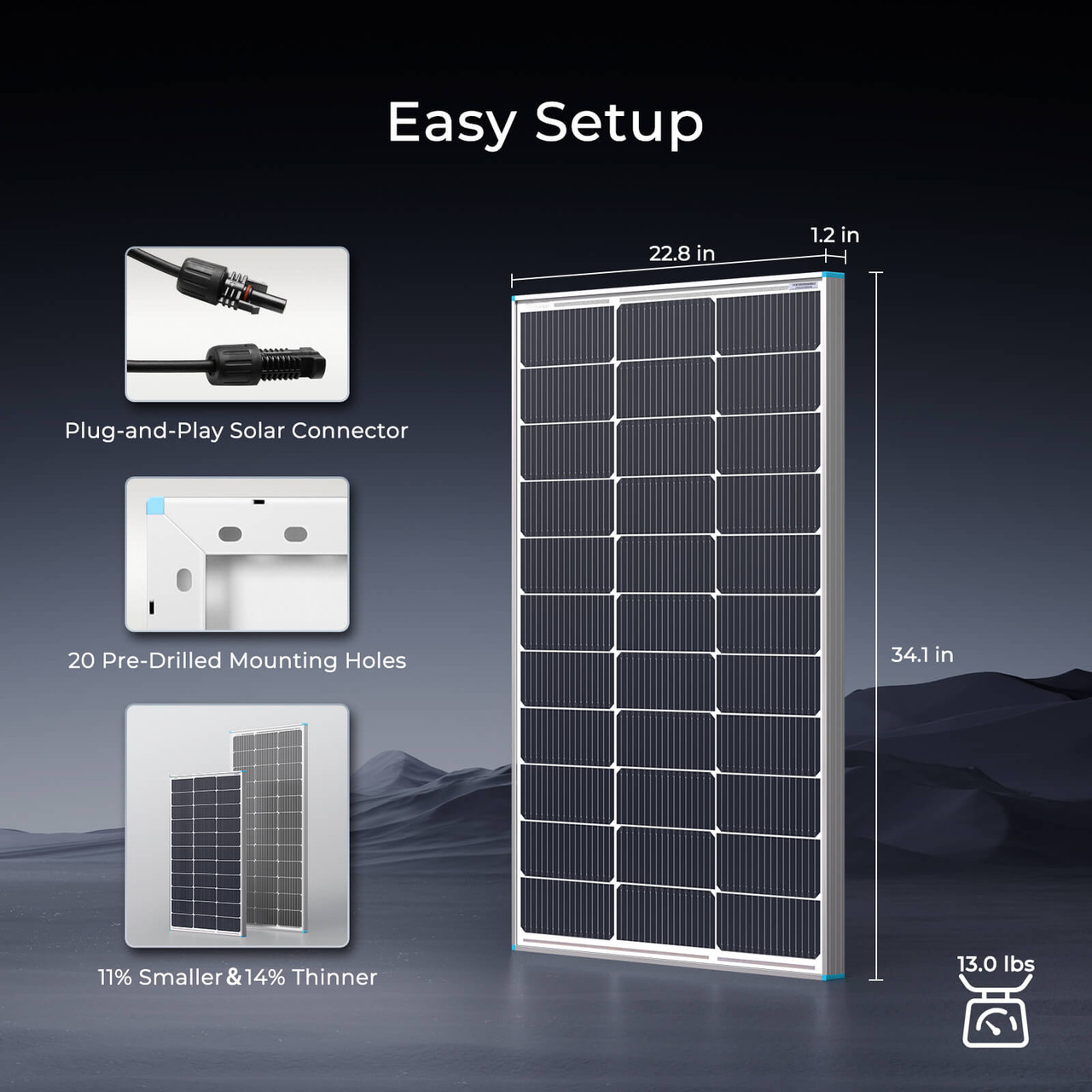

Compact Design for Simplified Installation and Expansion
The 100W N-Type solar panel is 8% lighter and 11% smaller than comparable P-Type PERC panels. Its streamlined design facilitates easier installation while maximizing space for future expansions, making it ideal for both small- and large-scale solar systems.
