Description

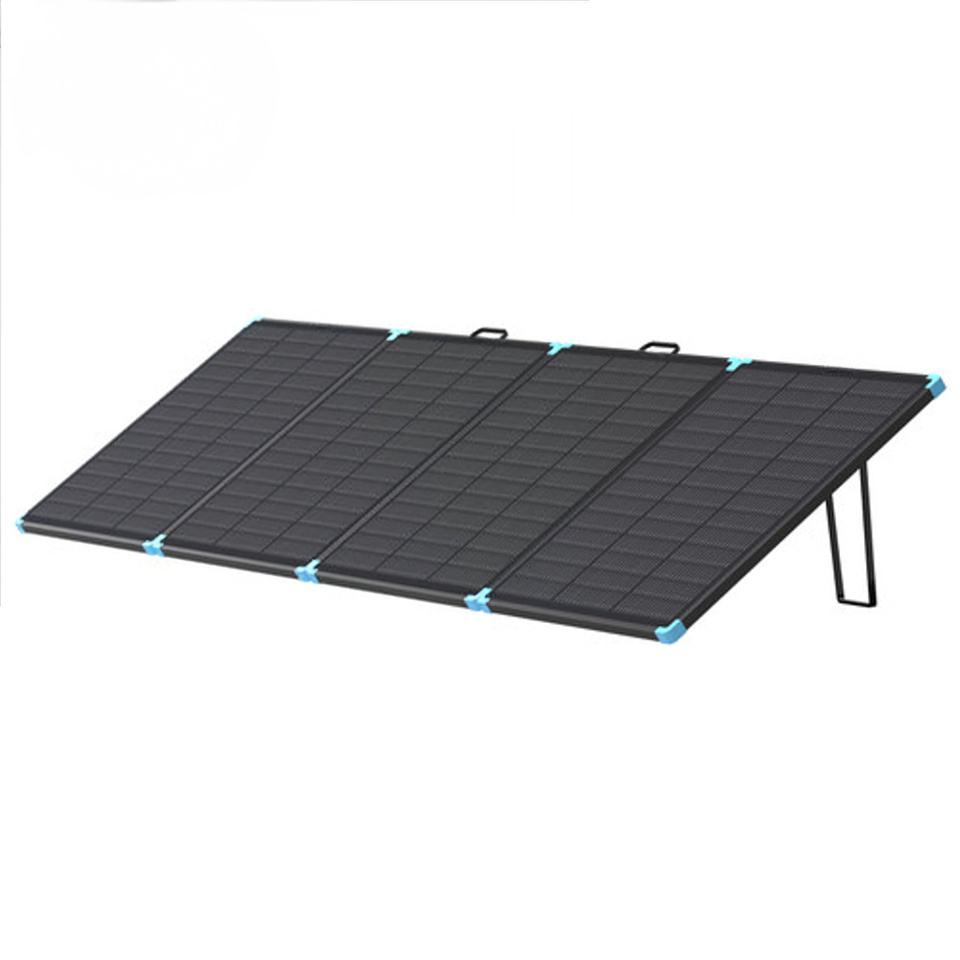

100W/300W Lightweight and Portable Solar Suitcase
This high-wattage solar suitcase is built for durability, featuring robust kickstands and advanced N-type solar cells for superior performance.
(100W Lightweight and Portable Solar Suitcase)
(300W Lightweight and Portable Solar Suitcase)

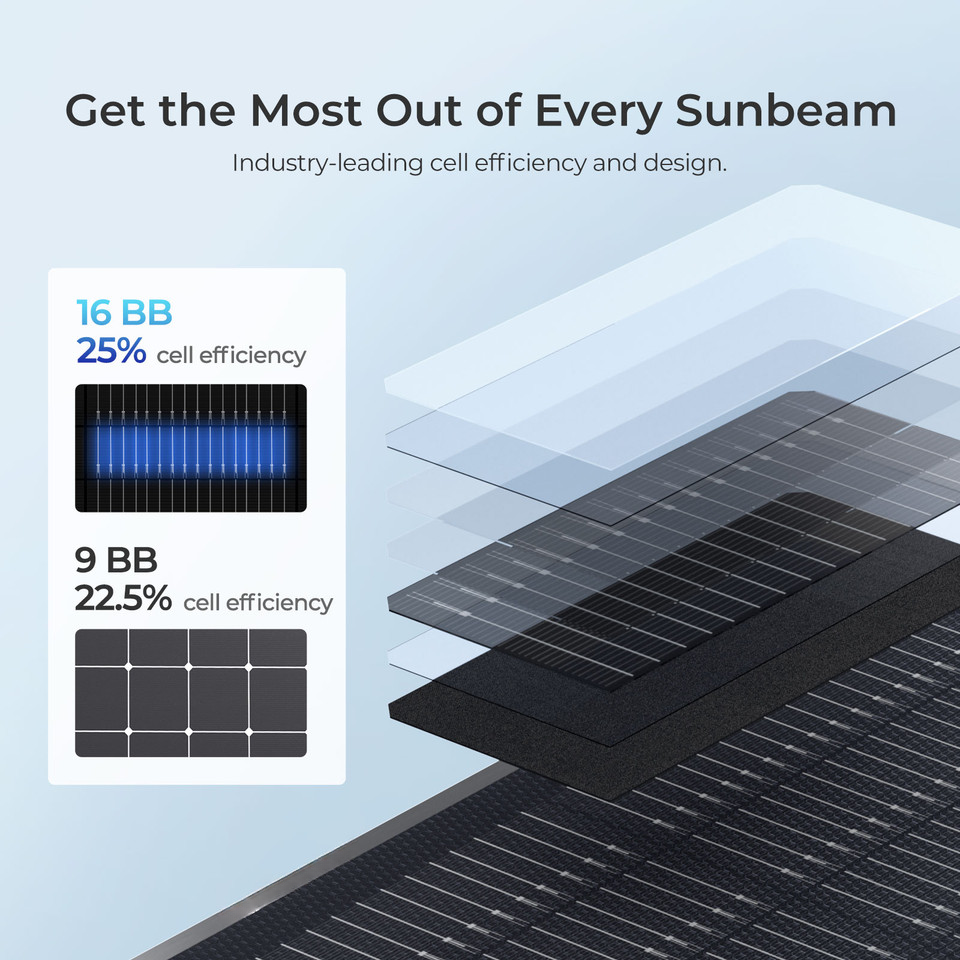

Unmatched Reliability and Superior Efficiency
Achieve maximum performance with 25% cell efficiency, enhanced by a compact solar cell layout that optimizes overall module efficiency.
100W N-Type Compact Suitcase |
|
| Max Power at STC (100W): 100W | Open Circuit Voltage (100W): 21.6V |
| Short Circuit Current (100W): 5.83A | Optimum Operating Voltage (100W): 18.7V |
| Optimum Operating Current (100W): 5.4A | Maximum System Voltage (100W): 600VDC |
| Maximum Series Fuse Rating (100W): 15A | Cell Efficiency (100W): 24.80% |
| Module Efficiency (100W): 15.2% | Operating Temperature (100W): -40°F-185°F / -40℃-85℃ |
| Dimensions (100W): 1048*625*20 mm | Dimensions (100W): 523*625*40mm (folded) |
| Weight (100W): 4.02kg / 8.86lb | |
| Warranty (100W) | |
| Material and workmanship warranty (100W): 3 years + 2 years paid extended warranty | Performance Warranty (100W): 5-year 90% output warranty, 12-year 80% output warranty |
| Certifications (100W) | |
| CE: Yes | Manufactured in a Certified ISO 9001 Facility: Yes |
| Rohs & CA65: Yes | |
300W N-Type Compact Suitcase |
|
| Max Power at STC: 300W | Open Circuit Voltage: 30.03V |
| Short Circuit Current: 12.6A | Optimum Operating Voltage: 25.2V |
| Optimum Operating Current: 11.9A | Maximum System Voltage: 600VDC |
| Maximum Series Fuse Rating: 15A | Cell Efficiency: 24.80% |
| Module Efficiency: 17.0% | Operating Temperature: -40°F-185°F / -40℃-85℃ |

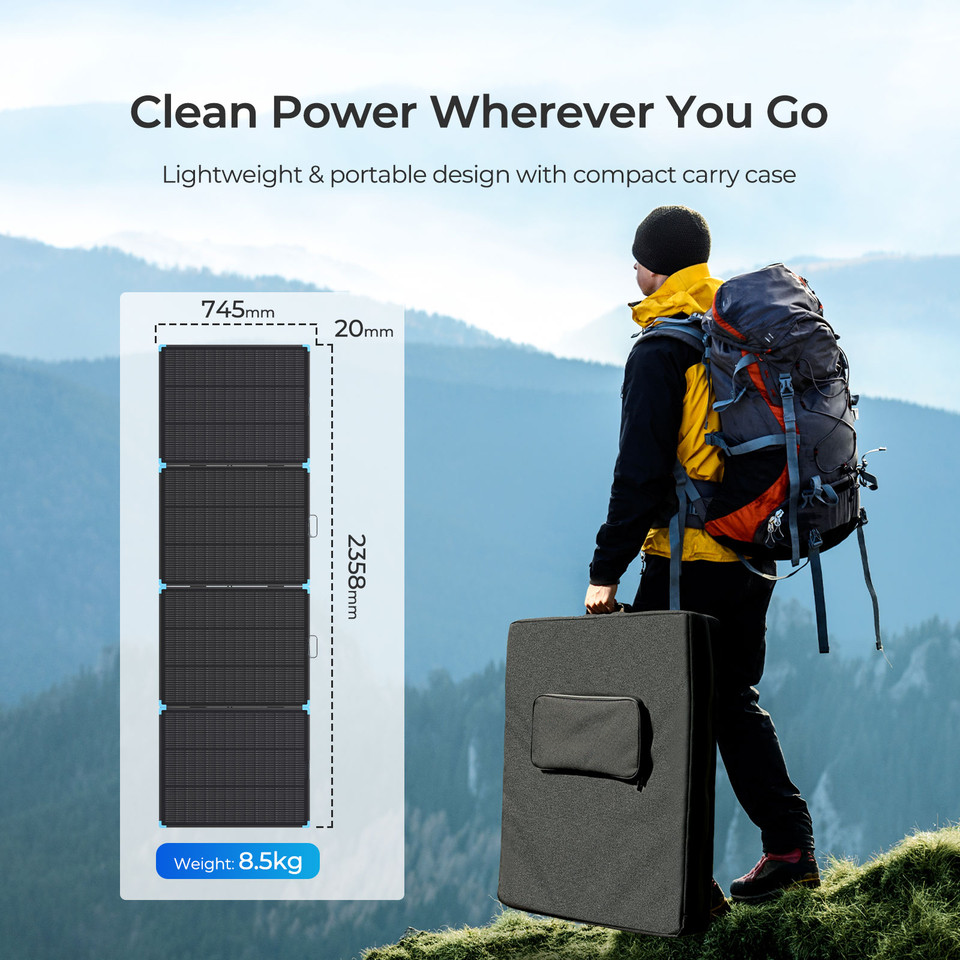

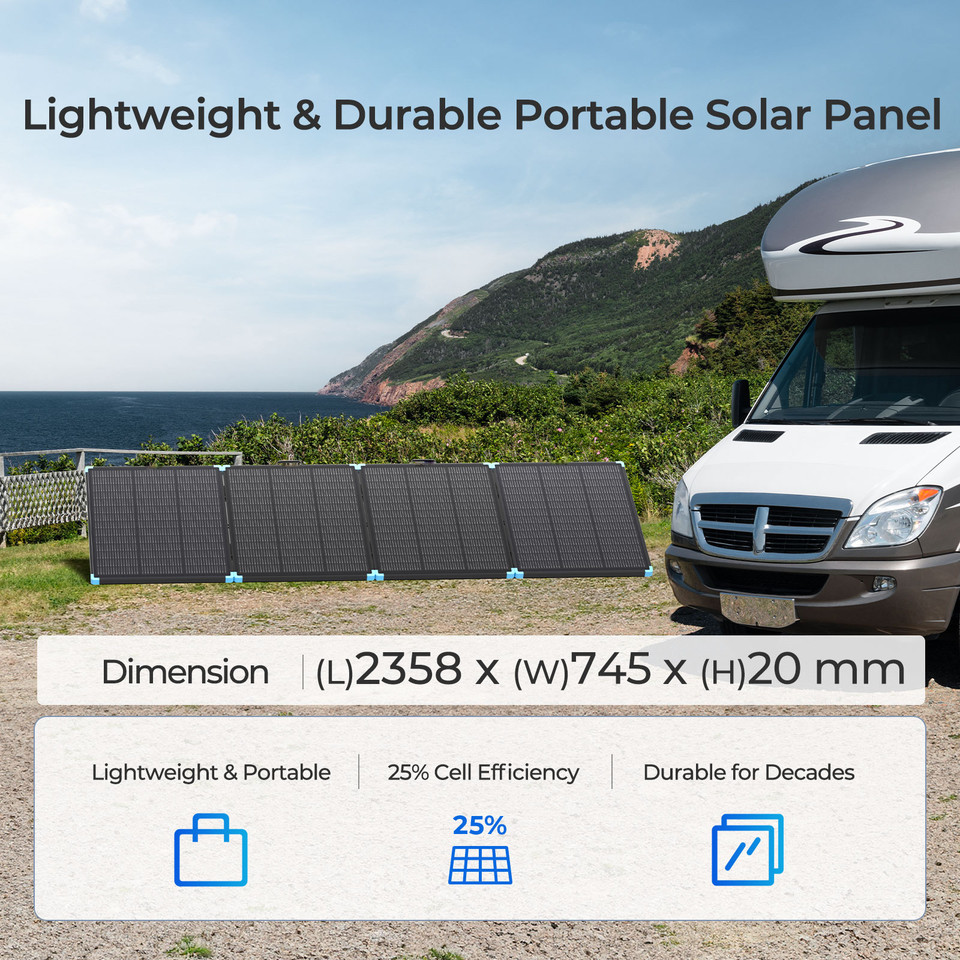

| Dimensions: 2358*745*20 mm | Dimensions (folded): 588*745*80 mm |
| Weight: 8.5kg / 18.74 lbs | |
| Warranty | |
| Material and workmanship warranty: 3 years + 2years paid extended warranty | Performance Warranty: 5-year 90% output warranty, 12-year 80% output warranty |
| Certifications | |
| CE: Yes | Manufactured in a Certified ISO 9001 Facility: Yes |
| Rohs & CA65: Yes | |

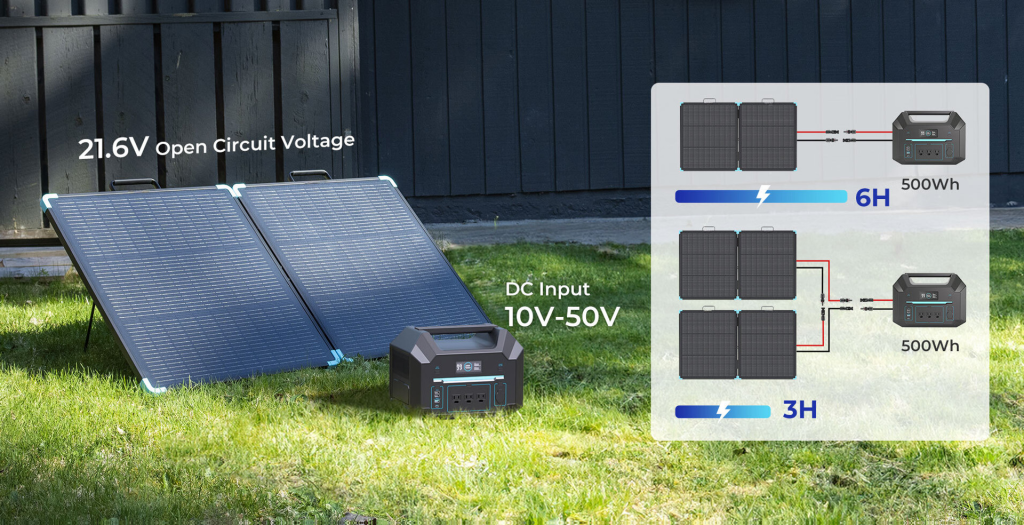

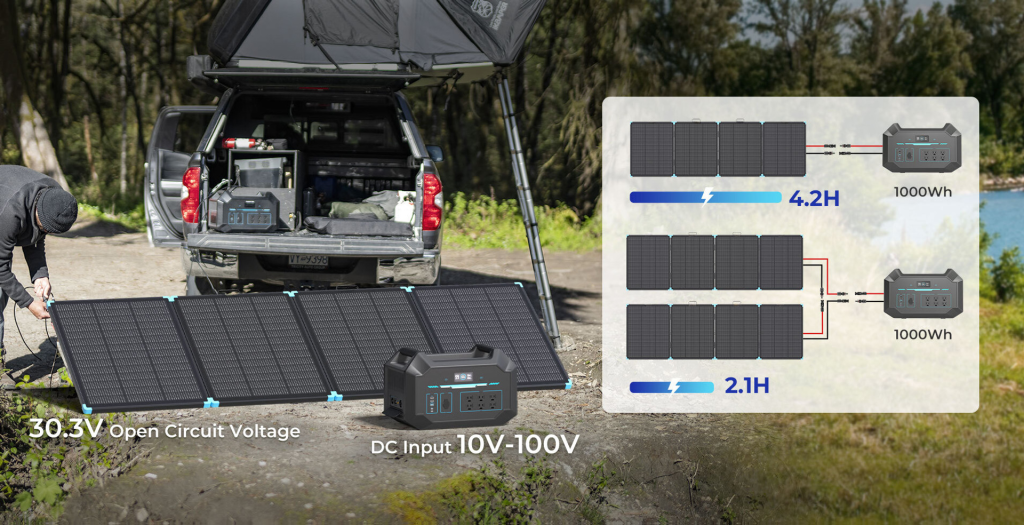

Portable Power, Anytime, Anywhere
Connect two panels in parallel to increase power output and charge more quickly, ideal for high-demand outdoor applications.
100W
300W
Portable Power Anywhere
Combine two panels in parallel to enhance power output and achieve faster charging, perfect for high-demand outdoor situations.

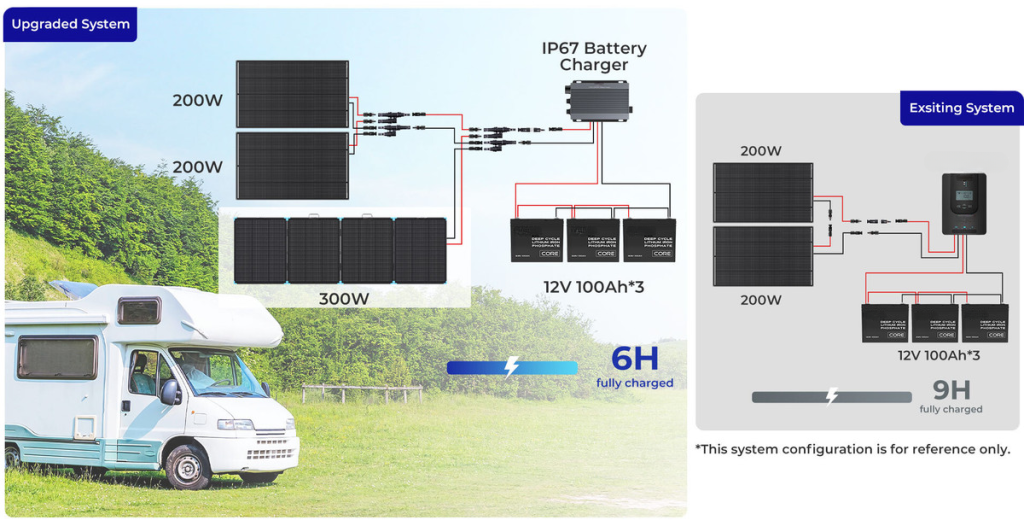

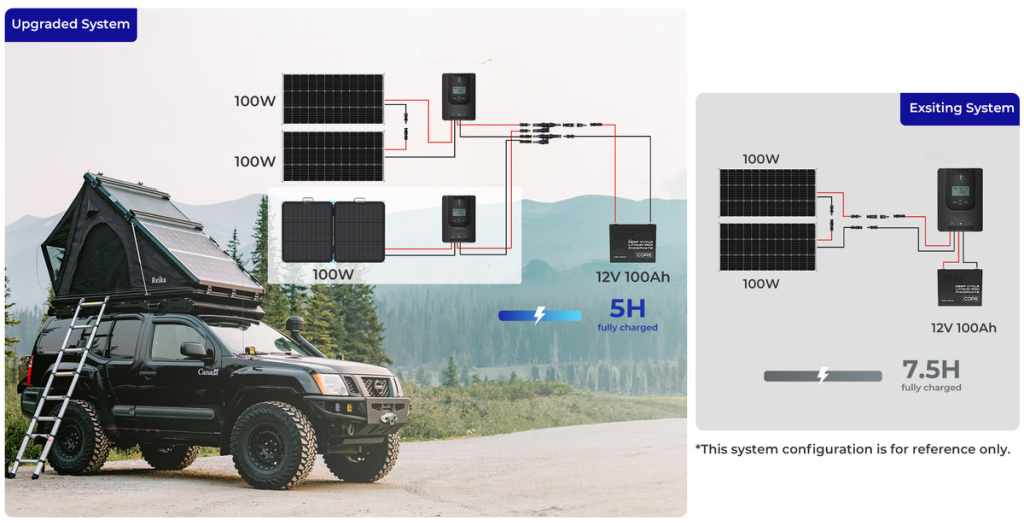

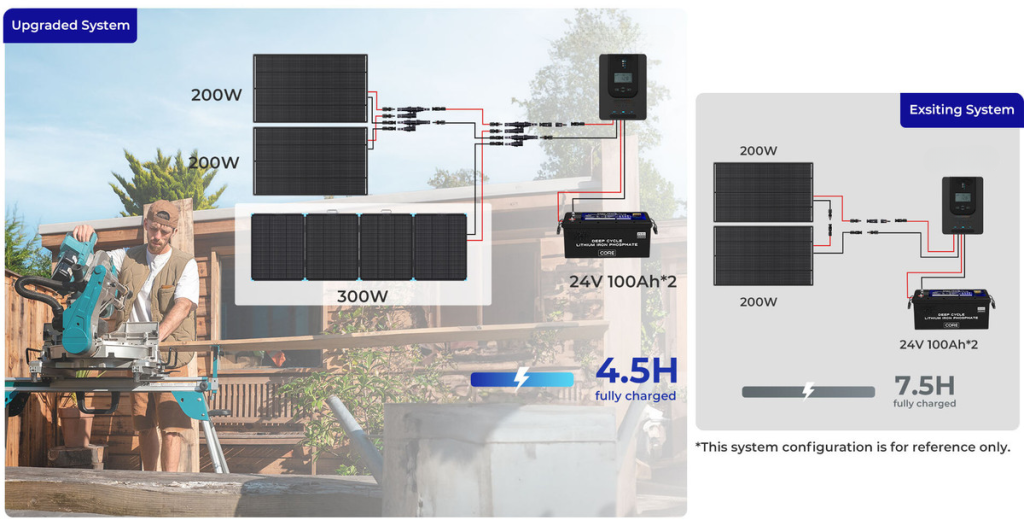

Dynamic Power Boost for Existing Solar Systems
Ensure that the PV input voltage is always lower than the solar input voltage of the controller to maintain optimal performance.
Dynamic Power Boost for Existing Solar Systems
Ensure that the PV input voltage is always lower than the solar input voltage of the controller to maintain optimal performance.

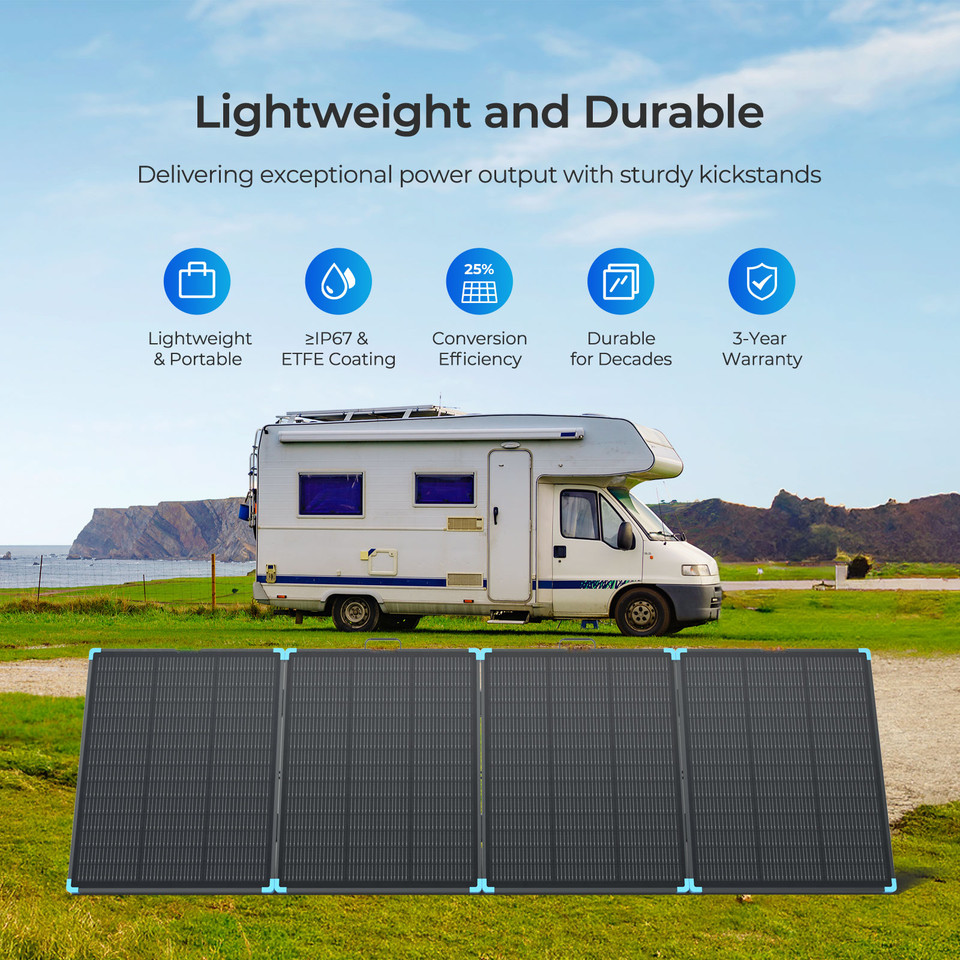

Durable Structure for Consistent Panel Performance

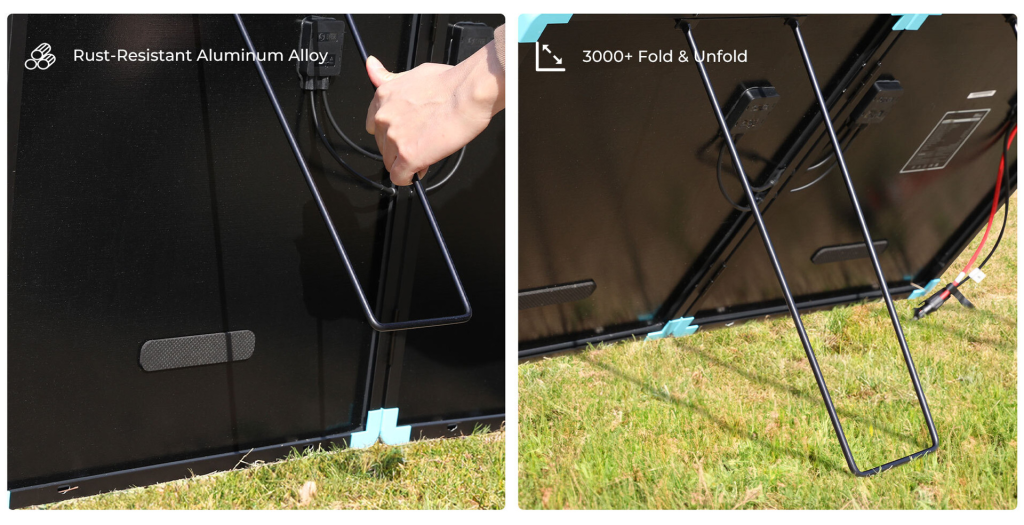

Sturdy, rust-resistant kickstands ensure maximum power generation and long-term reliability.

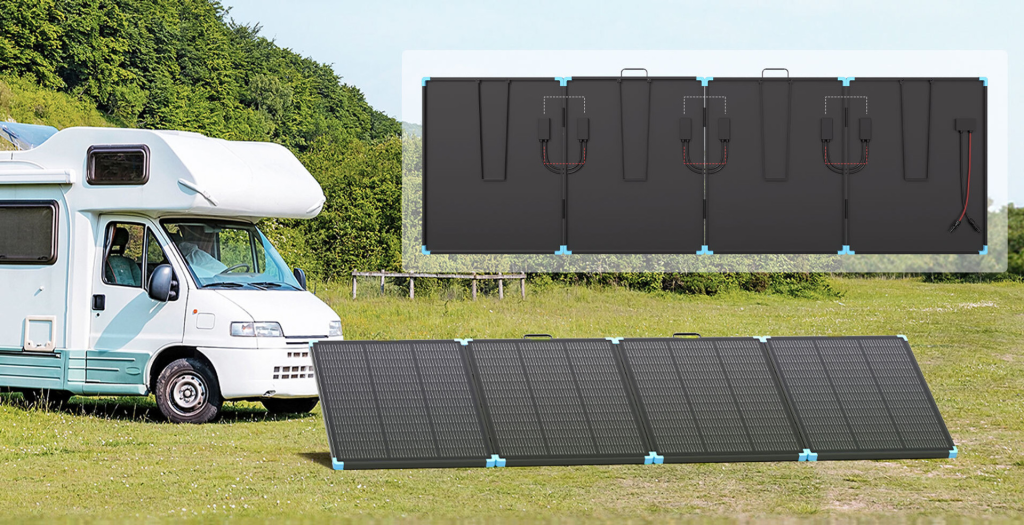

Consistent Performance in Partial Shading
Parallel wiring ensures that individual shadows won’t significantly impact the overall efficiency of interconnected panels.

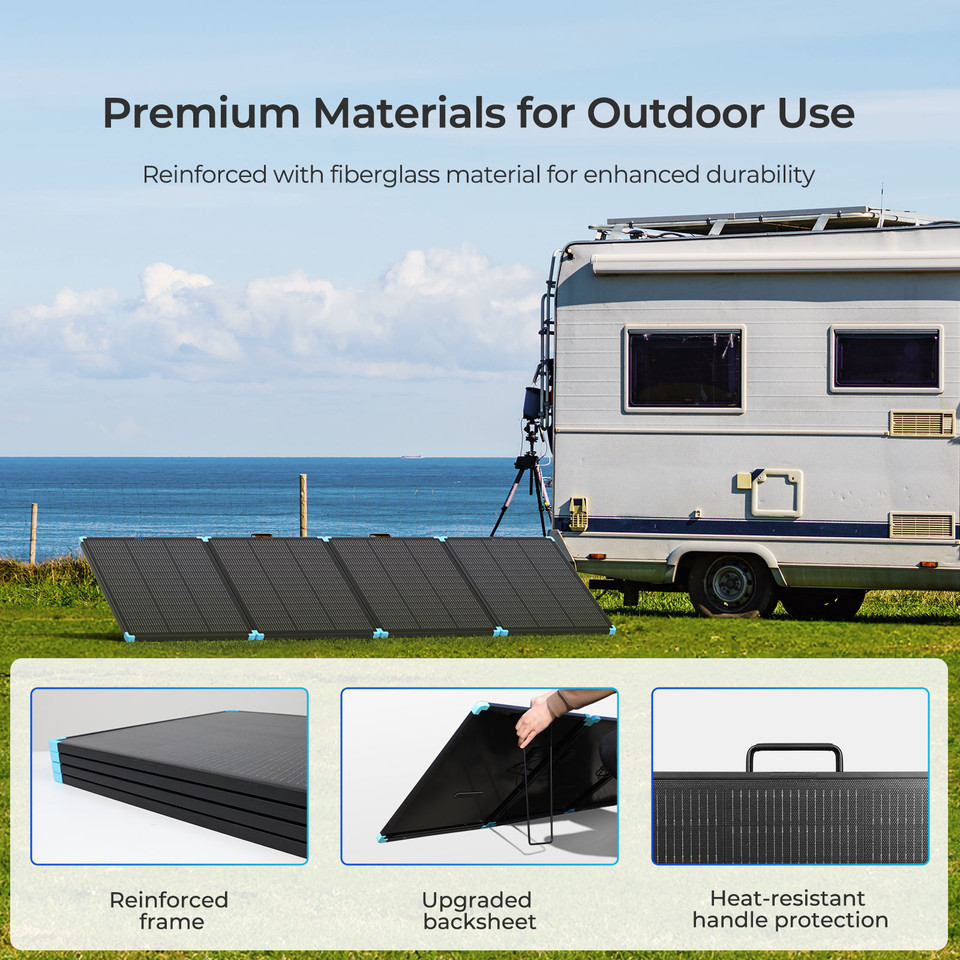

Unyielding Strength for Extended Outdoor Reliability
Protective Case
Fiberglass Reinforcement
Corner Protection
ETFE Coating

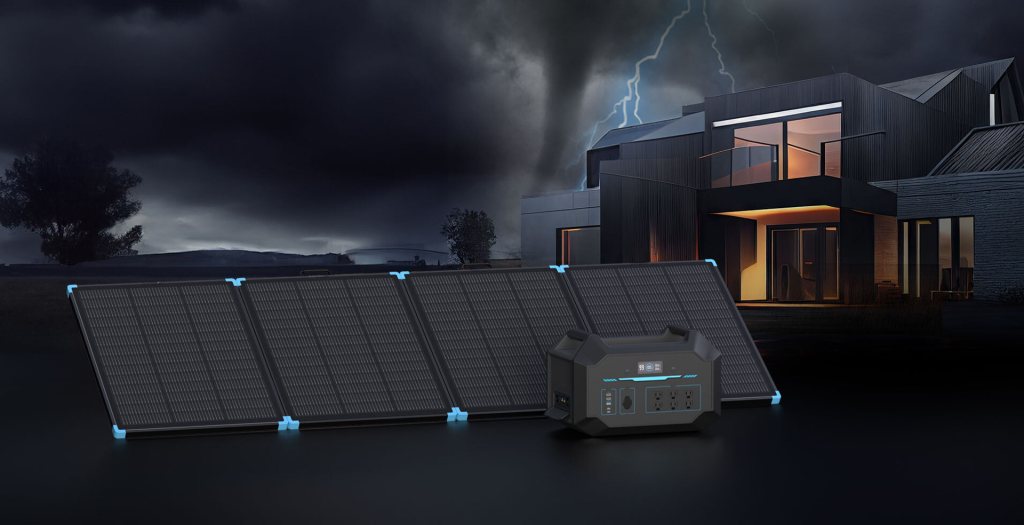

Instant Backup Power
Integrates effortlessly with a portable power station, providing plug-and-play emergency backup power when you need it most.

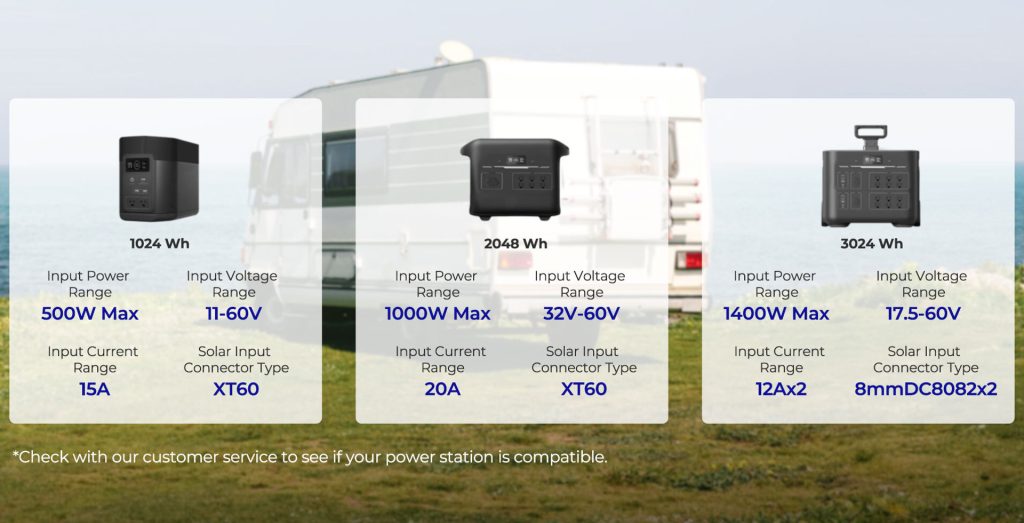

Universal Compatibility with Most Power Stations
Verify that the portable power station’s specifications align with the solar panel’s DC input range for optimal performance.
