Description
Looking for the ideal off-grid renewable energy solution? SOVA proudly introduces solar power with unmatched portability

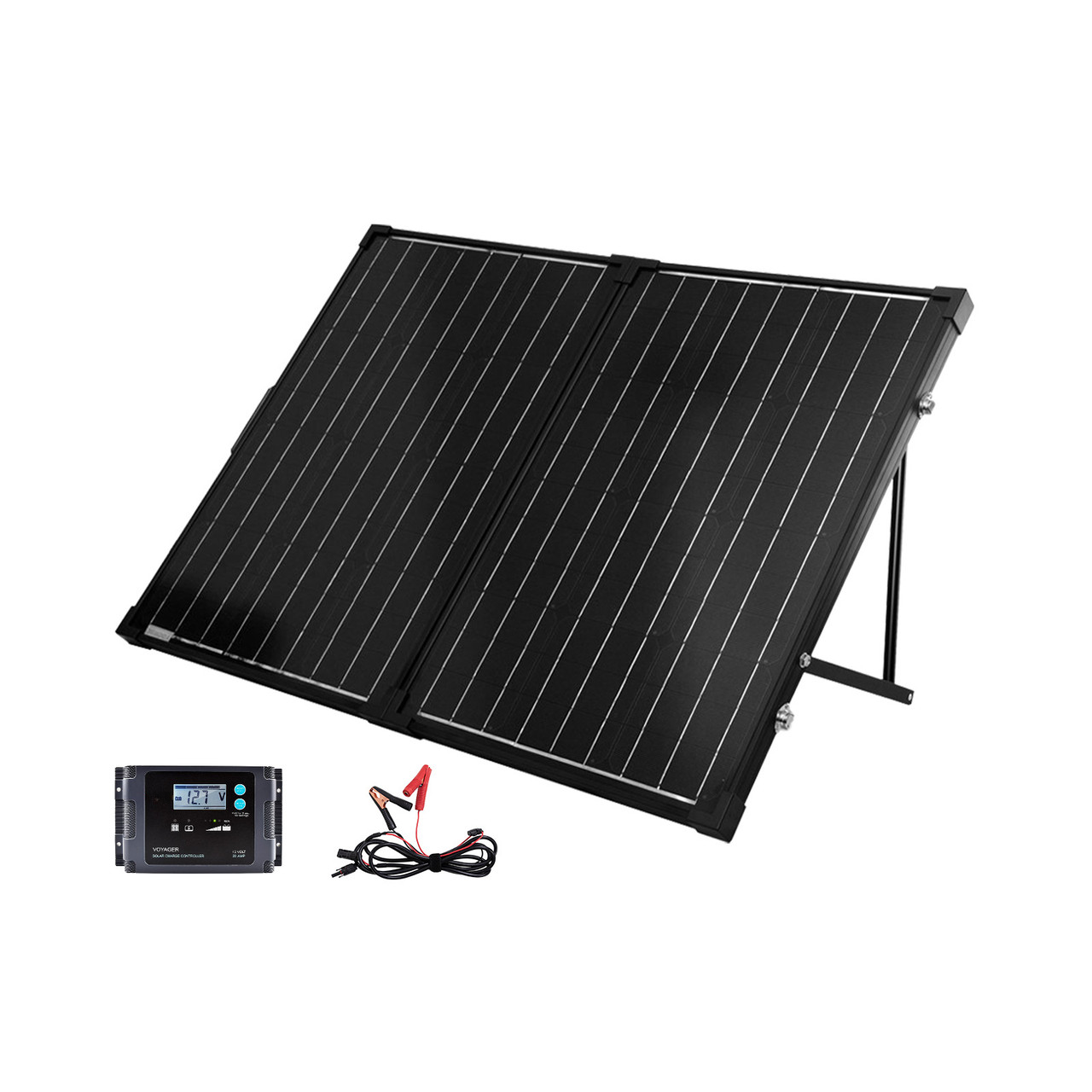

The SOVA 100W Solar Suitcase is the perfect companion for adventurous travelers, combining convenience and reliability for off-grid exploration. This portable solar panel features two 50W Monocrystalline Solar Panels, a set of wires with solar connectors, and a protective soft case for safe and easy transport. Equipped with an adjustable aluminum stand, secure latches, and a durable heavy-duty handle, the SOVA 100W Solar Suitcase redefines portable power, making it a game-changer for off-grid energy solutions.
Built-in Components |
|
| Junction Box: One single-hole and one double-hole junction box | Cell Type: 158 monocrystalline |
| Number of Cells: 72 (3*12*2) | |
100 Watt Mono Foldable Solar Suitcase |
|
| Maximum Power at STC: 100W | Cell Efficiency: 22% |
| Optimum Operating Voltage (Vmp): 20.3V | Open-Circuit Voltage (Voc): 24.3V |
| Optimum Operating Current (Imp): 2×2.47A | Short-Circuit Current (Isc): 2 x 2.73A |
| Operating Temperature: -40°F to 185°F | Maximum Series Fuse Rating: 20A |
| Maximum System Voltage: 600VCD (UL) | Weight: 9.6kg/21.2 lbs |
| Maximum AWG Size Range (MC4): 30A | Dimensions: 24.8 x 20.0 x 2.8 inches |
| Material and workmanship warranty: 3 years | Performance Warranty: 5-year 95% output warranty, 10-year 90% output warranty, 25-year 80% output warranty |
20A Voyager Charge Controller |
|
| Nominal Voltage: 12 VDC | Self-consumption: ≤8mA |
| Rated Charge Current: 20A | Operating Temperature: -40°F to 140°F |
| Max. PV Input Voltage: 26 VDC | Dimensions: 6.38 x 3.82 x 1.34 inches |
| Grounding: Common Negative | Weight: 0.88 lbs |

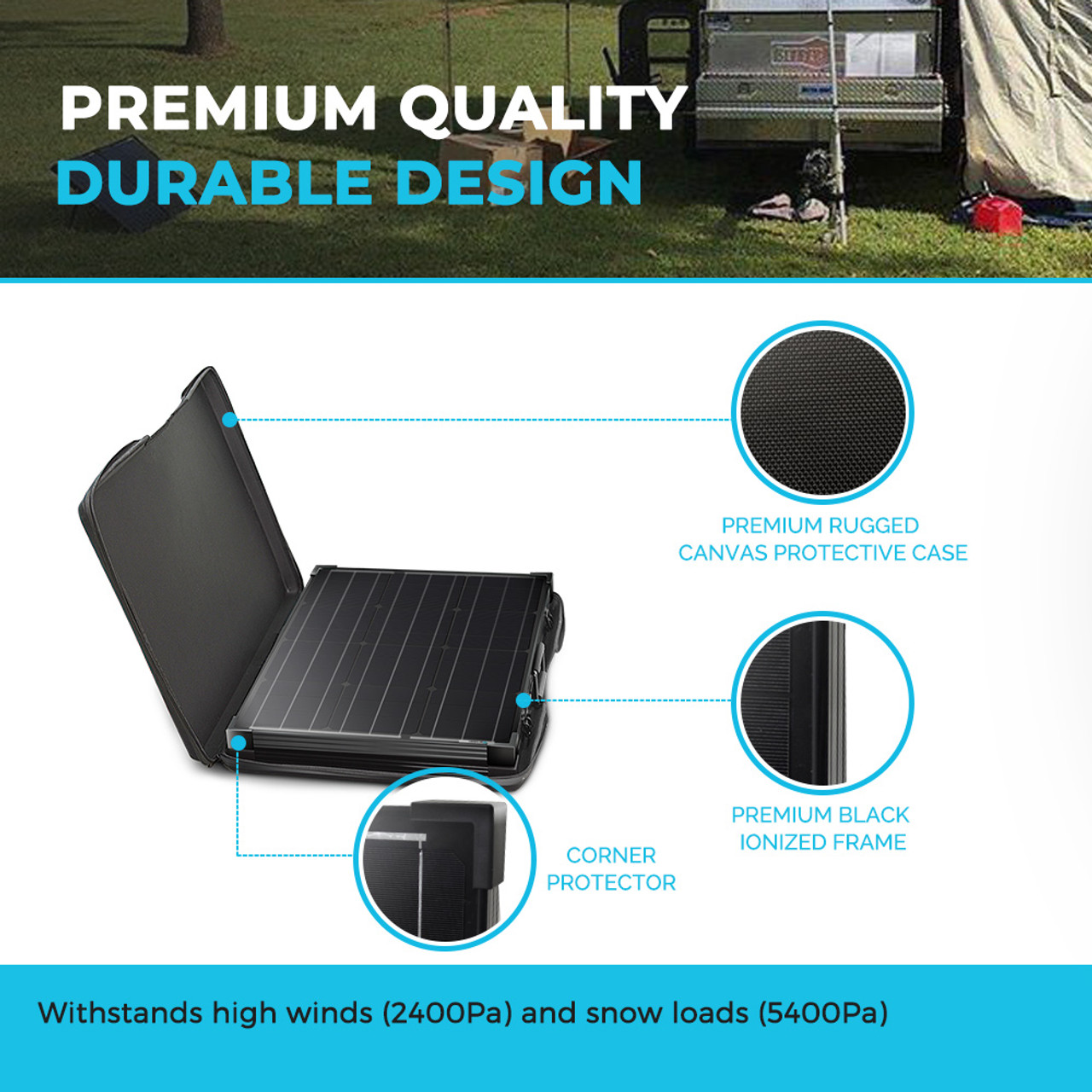

Enhanced Module Efficiency

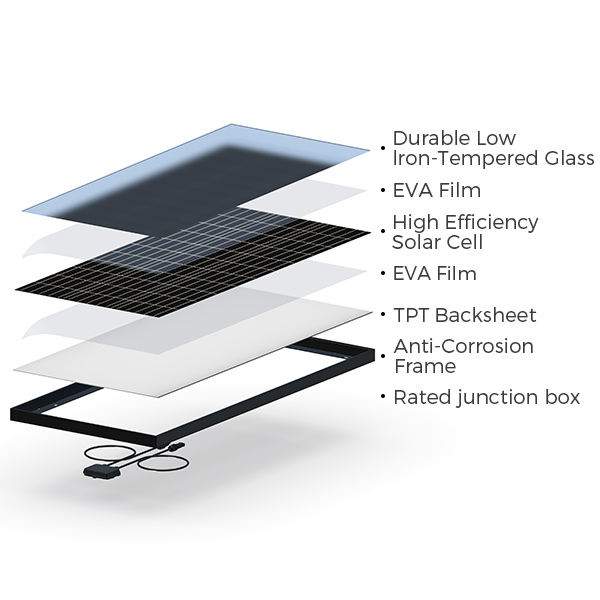

SOVA solar panels are built with Grade A+ solar cells and feature multi-layered sheet laminations, which enhance cell performance and ensure a long service life.

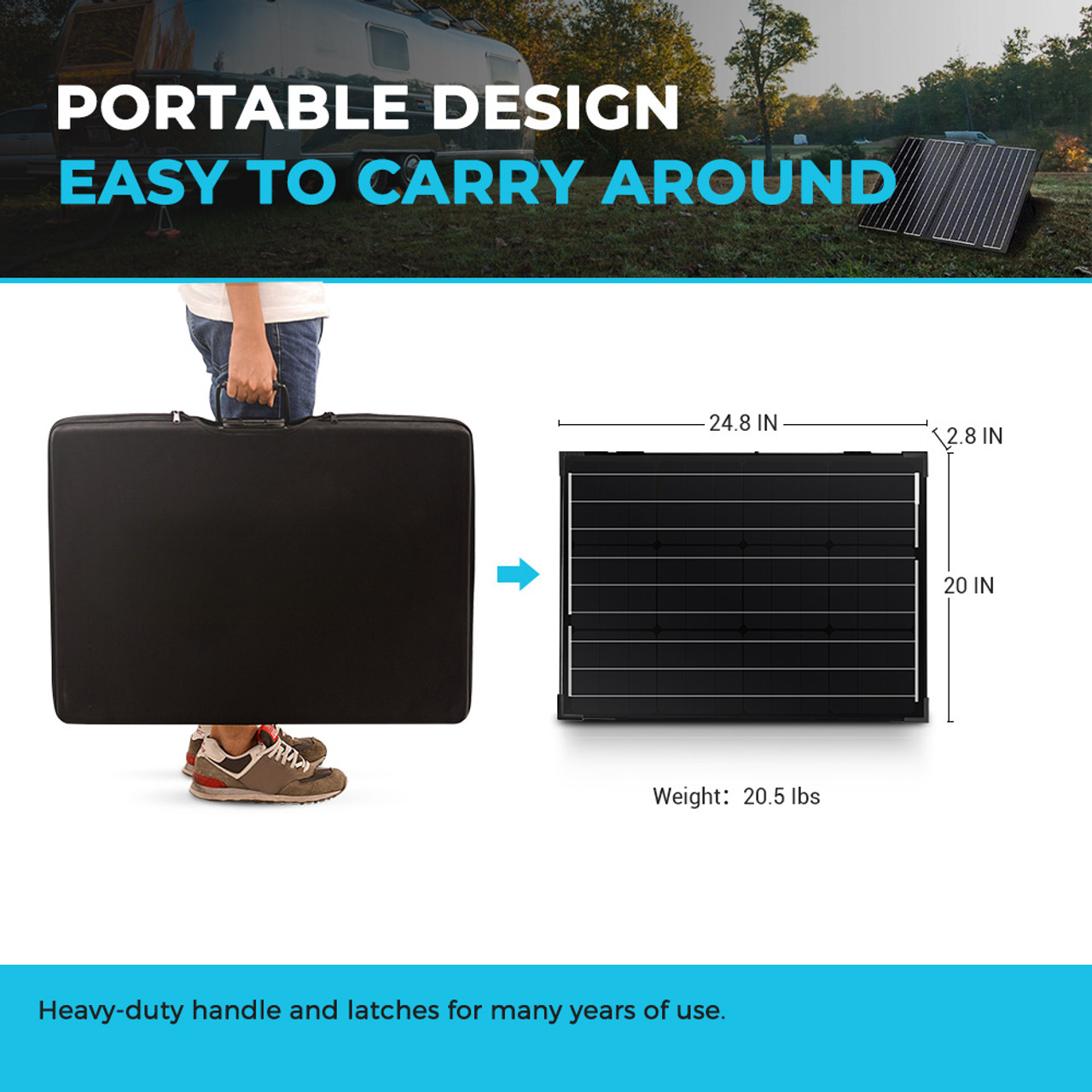

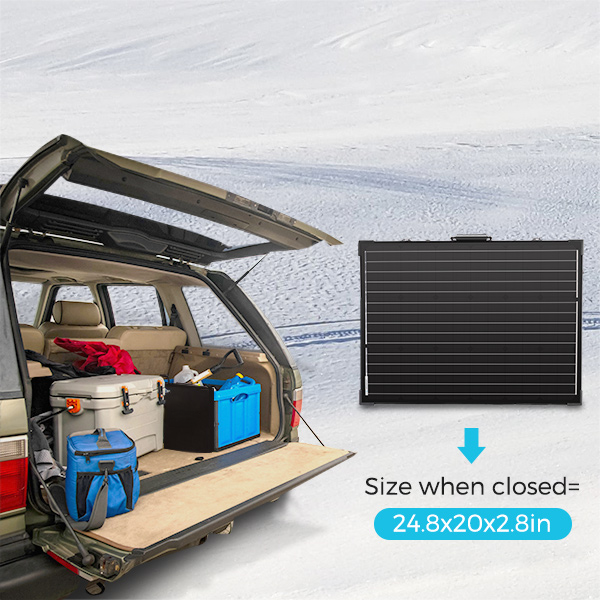

Compact Design for Easy Carrying and Storage
Simple and Quick Setup

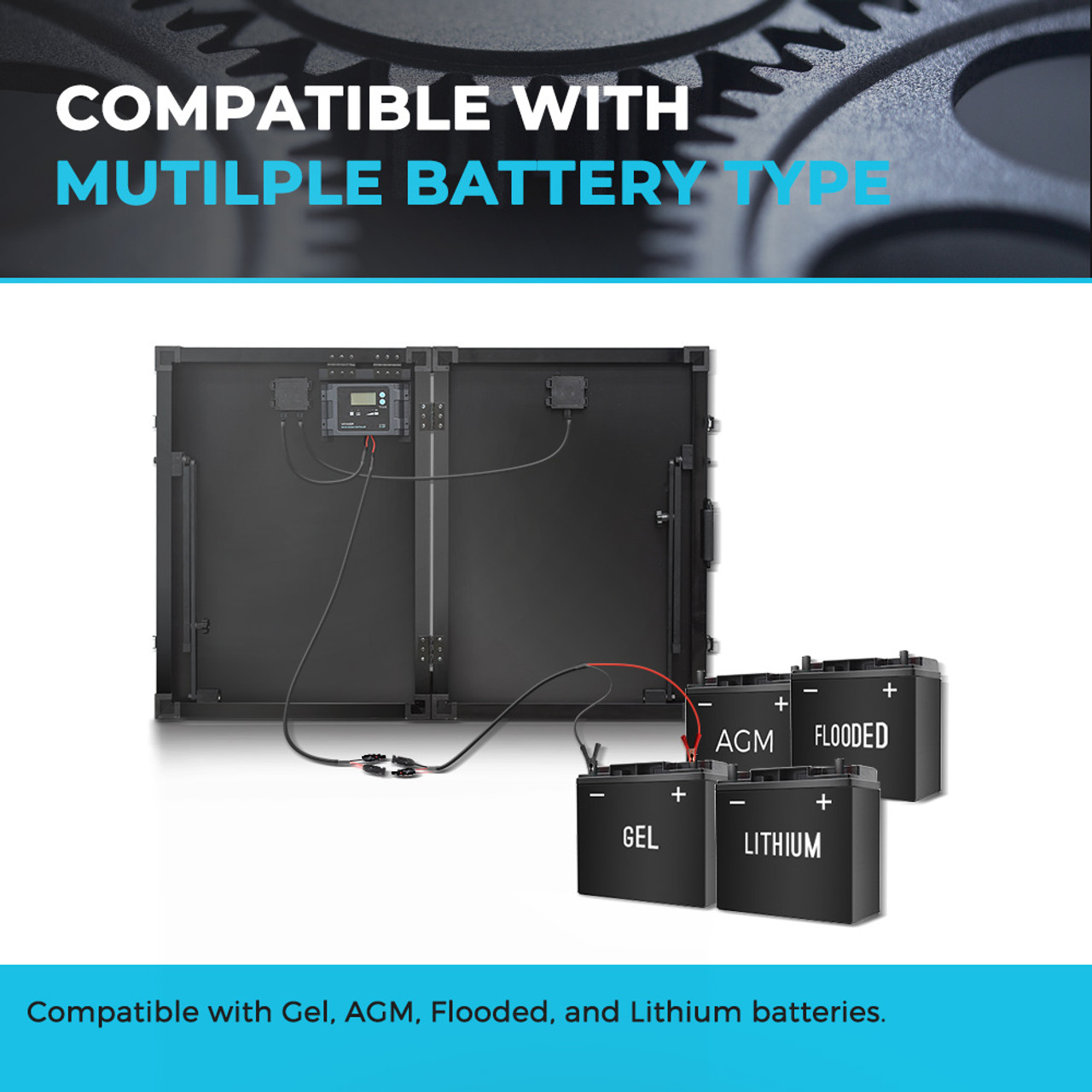

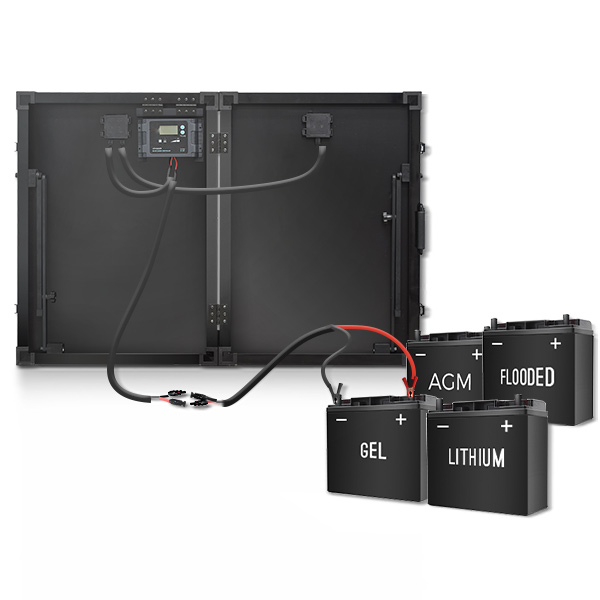

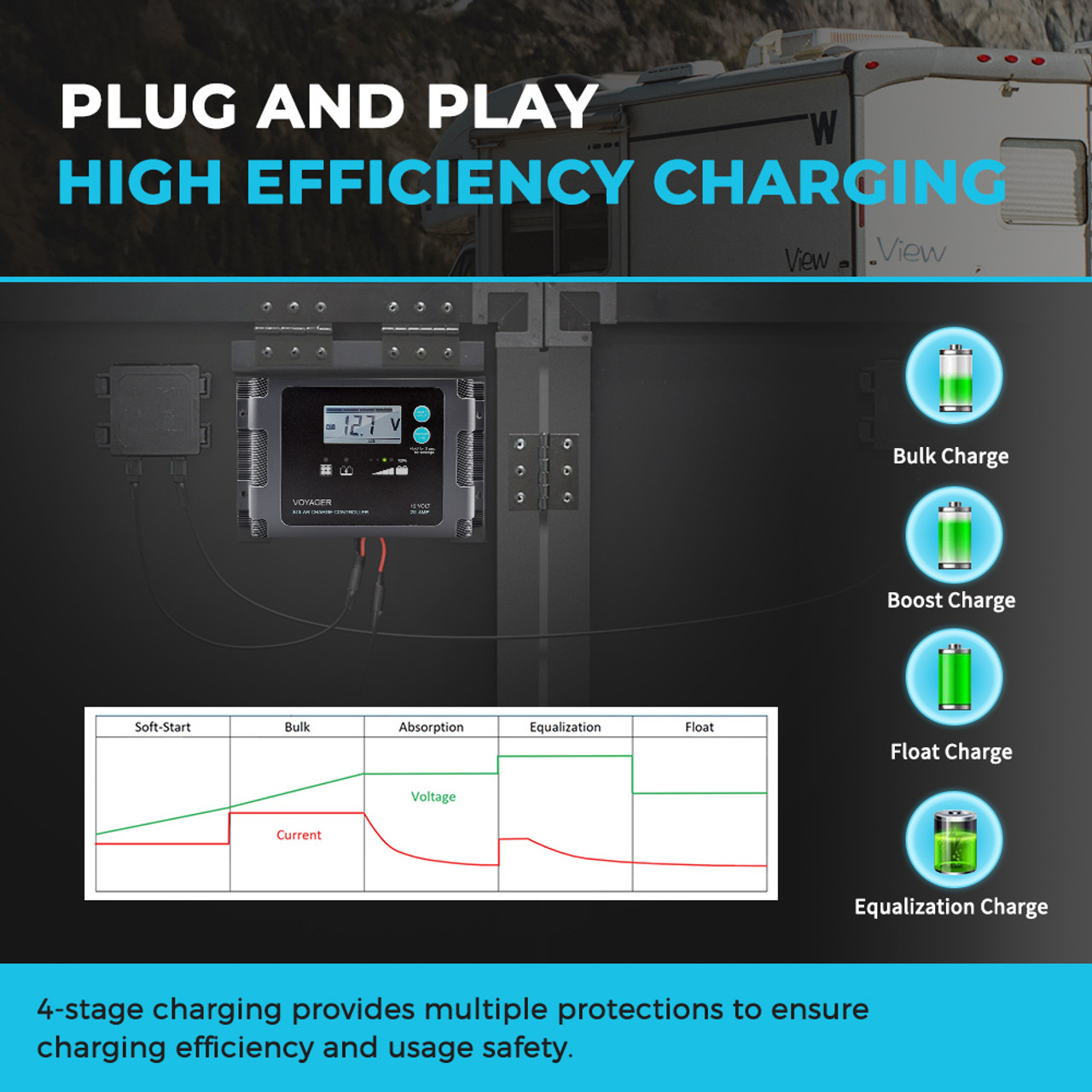

This kit includes alligator clips, providing a straightforward way to connect the Voyager charge controller to your battery—perfect for mobile systems seeking flexibility.
Increased Power and Versatility

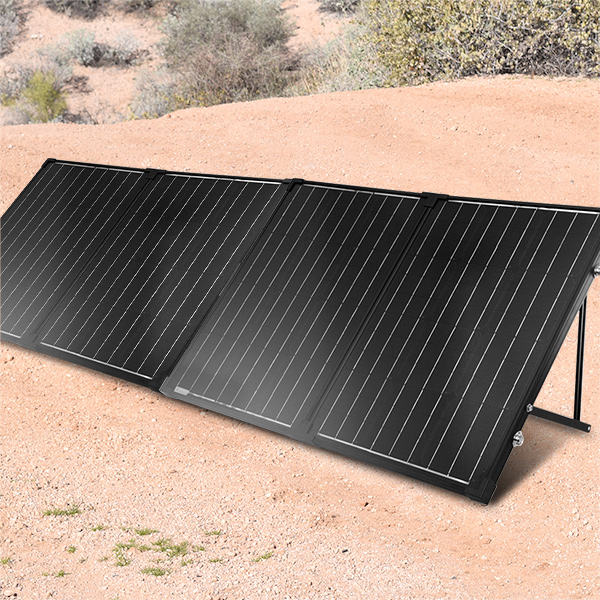

Expandable System Design
Additional panels can be added to the system based on your needs and available space. For optimal performance, we recommend connecting solar suitcases with the same specifications. The included 20A charge controller supports the expansion of one additional 100W solar suitcase.
