Description
Compact, Sleek, and Incredibly SOVA Strong

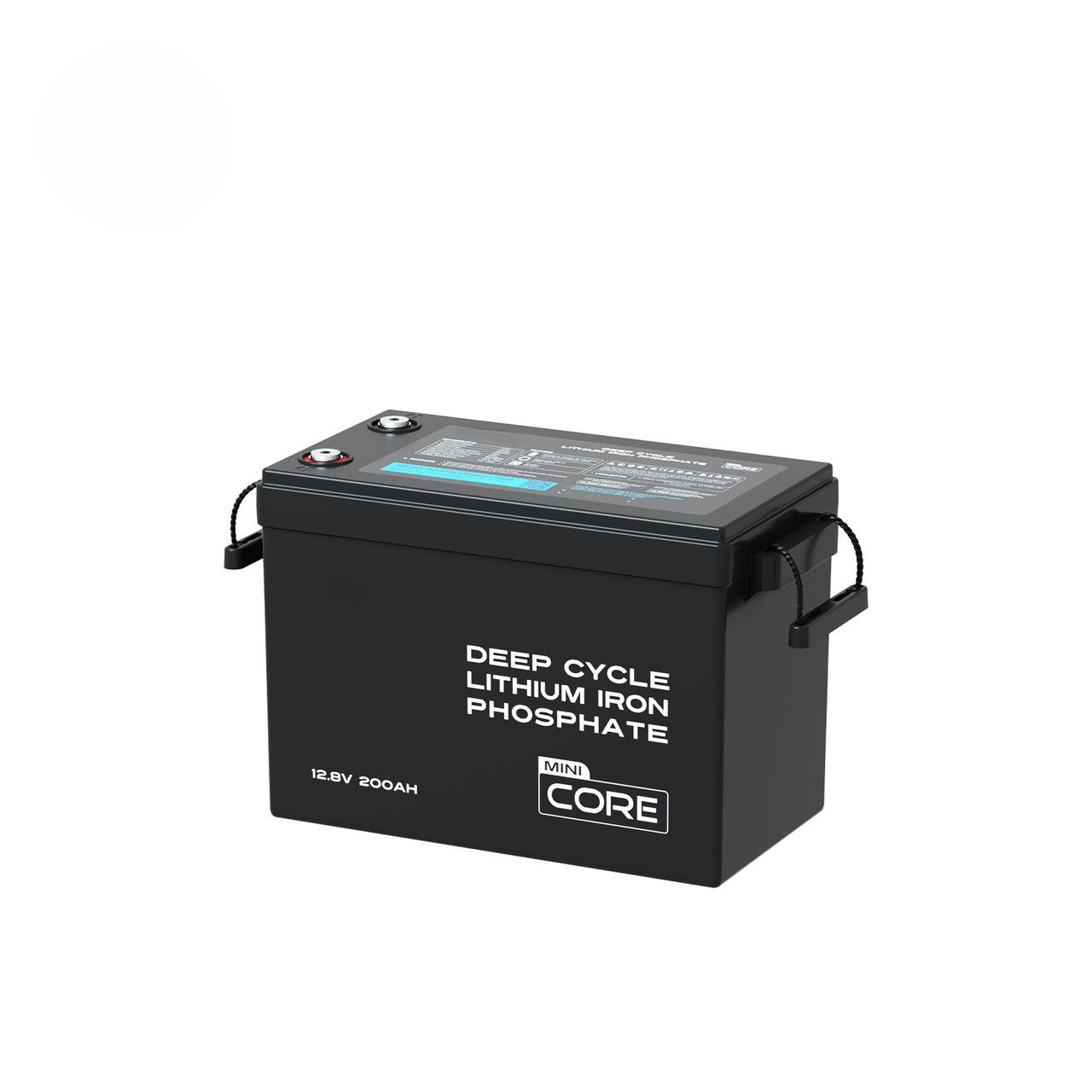

Experience compact power without compromise. The SOVA 12V 200Ah Core Mini LiFePO4 Battery is 21% smaller than standard models yet boasts a robust 200A BMS and a low-temperature cut-off for added protection. Designed for both travel and home use, it’s the perfect solution for versatile and reliable power demands.

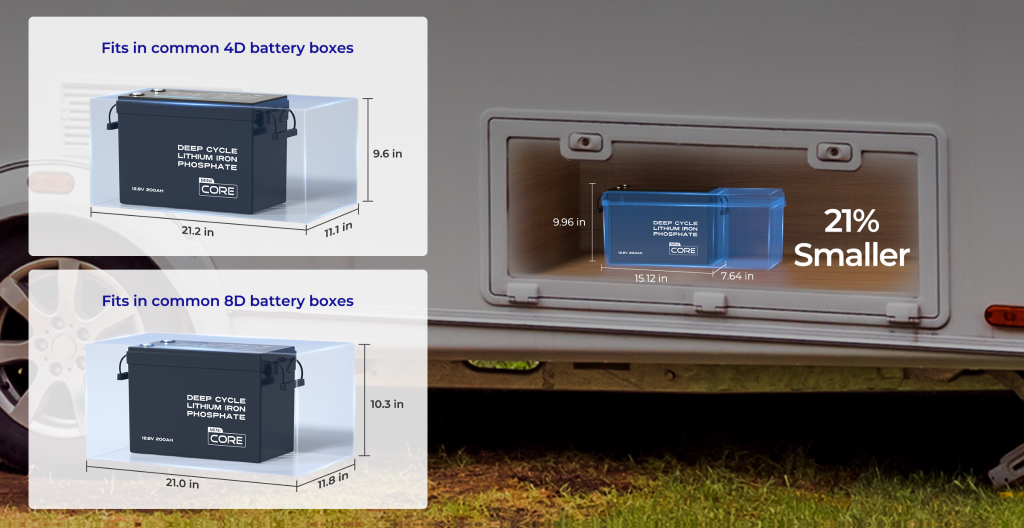

21% Smaller Than Comparable Models
With its compact and streamlined design, this battery saves space, simplifies connections and maintenance, and fits seamlessly into various battery boxes, including 8D and 4D sizes.

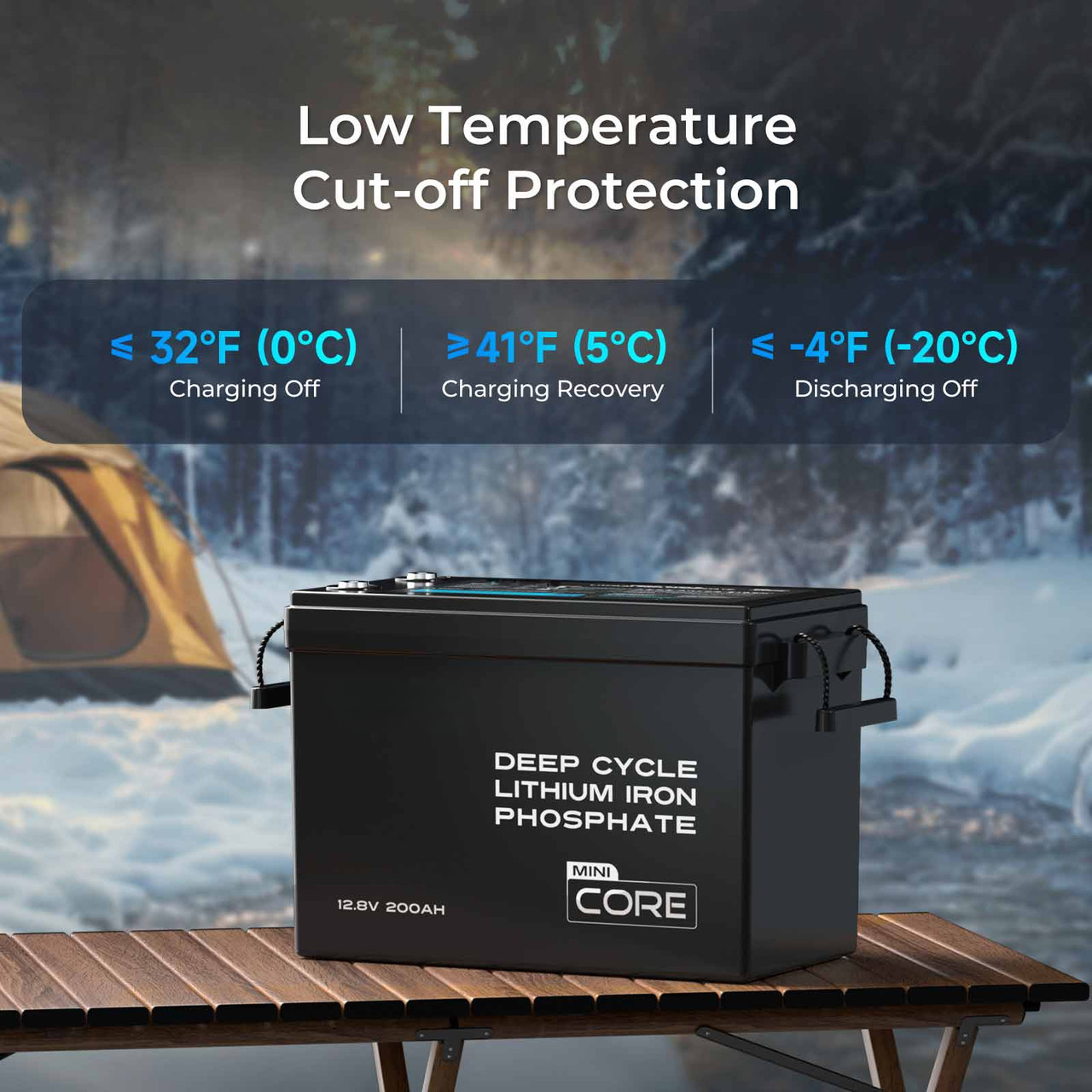

Automatic Low-Temperature Cut-Off for Hassle-Free Operation
Equipped with a built-in BMS and automatic low-temperature cut-off, this lithium battery eliminates the need for manual intervention. Enjoy peace of mind during winter travels as the battery manages itself, allowing you to focus on your adventure.
Exceptional Peak Power Output
Designed to deliver up to 380A in just 10 seconds, this portable powerhouse effortlessly supports high-energy appliances, such as microwaves, that require a significant start-up current.
Durable, Vibration-Resistant Design
Engineered with metal cell spacers, this design minimizes damage from rough terrain and turbulent waters, ensuring long-lasting performance in demanding conditions.

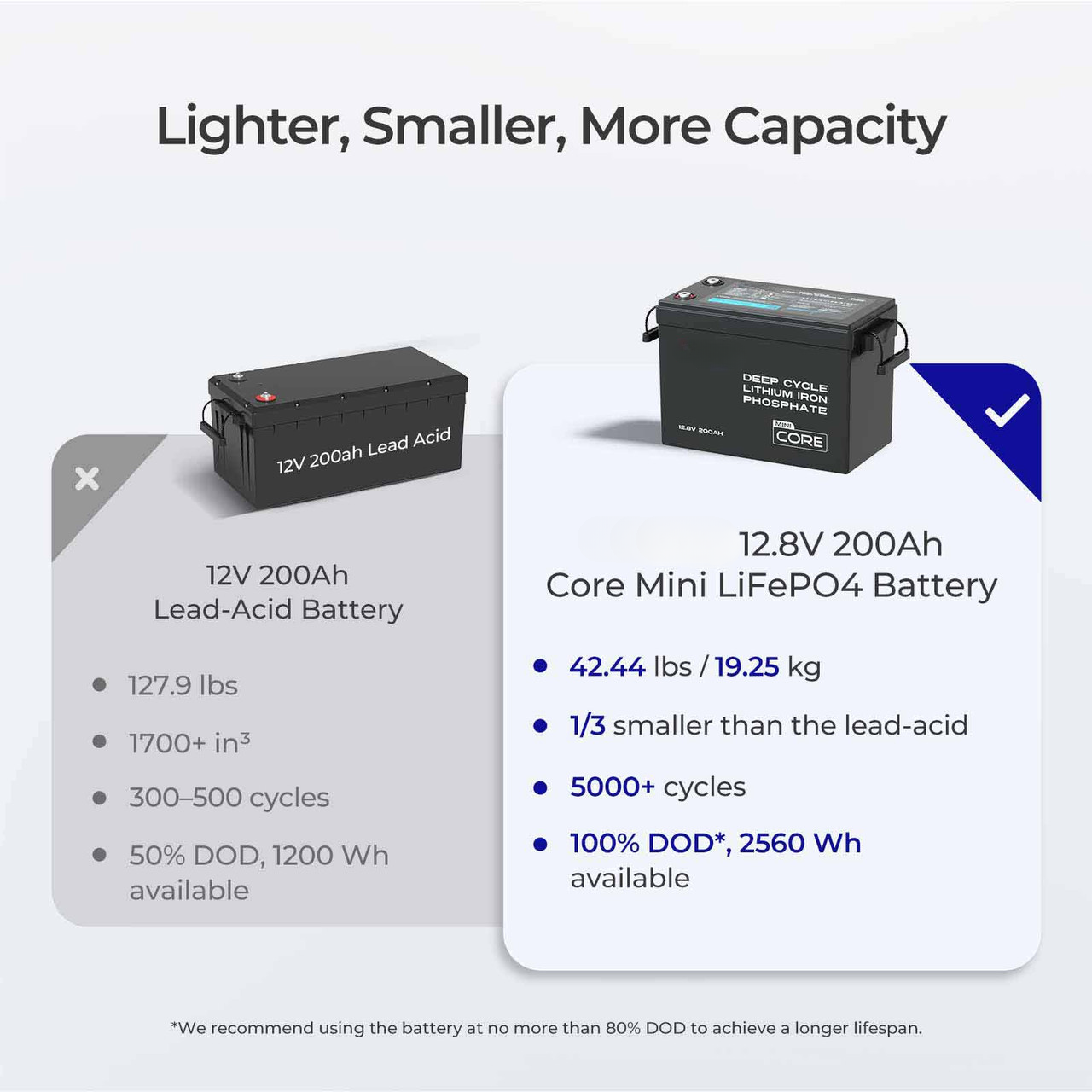

12.8V 200Ah Core Mini Deep Cycle Lithium Iron Phosphate Battery |
|
|
Electrical Specifications |
|
| Rated Capacity: 200Ah (0.5C, 25℃) | Voltage: 12V |
| Energy: 2560Wh | Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL) |
|
Temperature Parameters |
|
| Operation Temperature Range: 0°C to 55°C (Charge); -20°C to 65°C (Discharge) | Storage Temperature Range: -4°F to 140°F (-20°C to 60°C) |
| Operation Relative Humidity: 5% to 95% | |
|
Charging Parameters |
|
| Voltage Range: 10V to 14.6V | Maximum Continuous Charge Current: 100A |
|
Discharging Parameters |
|
| Maximum Continuous Discharge Current: 200A | Peak Discharge Current: 380A@10s |
| Dimension (L x W x H): 15.12×7.64×9.96 in / 384×194×253 mm | Weight: 42.44 lbs / 19.25 kg |
| Terminal Bolt Size: M8×1.25×12 mm & M8×1.25×16 mm | Protection Rating: IP65 |
|
Warranty |
|
| 5-year material warranty: Yes | |
|
Certifications |
|
| MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA: Yes | Shop By Scenario: RV, Vans & Camper |
| Shop By Scenario: Trolling Motor | |
